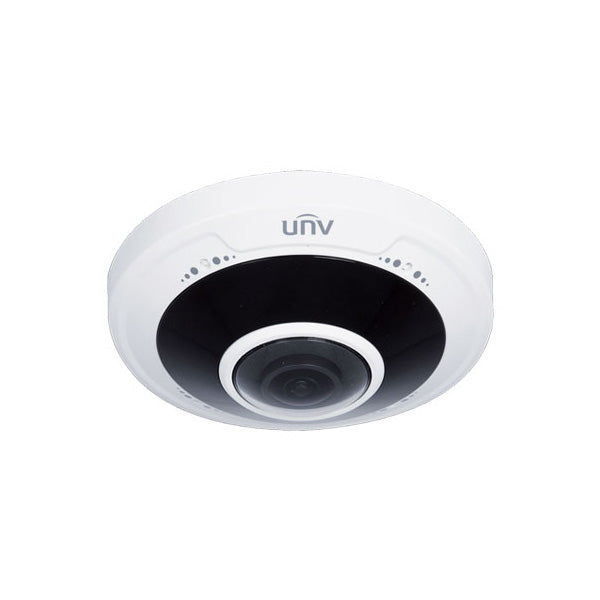

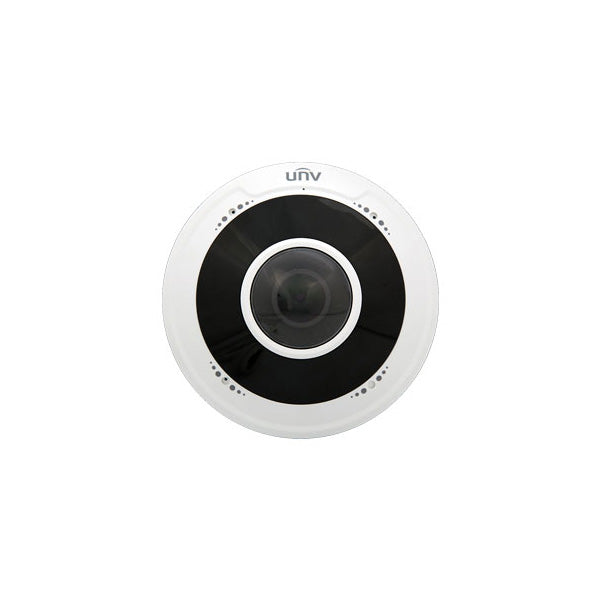

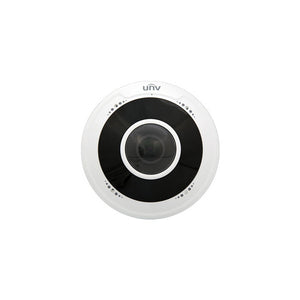

UNV 5MP NDAA-Compliant IP Fisheye Security Camera with 360° Field of View and a 1.4mm Fixed Lens (IPC815SB-ADF14K-I0)
Translation missing: en.products.product.sku: SKU# 3399
Order within to ship- Regular price
- $739.00
Couldn't load pickup availability
You may want these accessories for this product
UNV Junction Box for Fixed Lens & ...
UNV Waterproof Cable Joint (TR-A01...
UNV Fixed Dome Indoor Pendant Moun...
UNV 400mm Extender for PTZ Dome Pe...
UNV 500mm Extender for PTZ Dome Pe...
UNV Wall Mount W/ Junction Box for...
Related Media
IPC815SB-ADF14K-I0
IP Security Camera
5MP
HD resolution
1.8mm
Fixed Lens
IP66
Weatherproof Rating
Up to 30ft
Night Vision IR Range
3 Year Warranty
Warranty Information

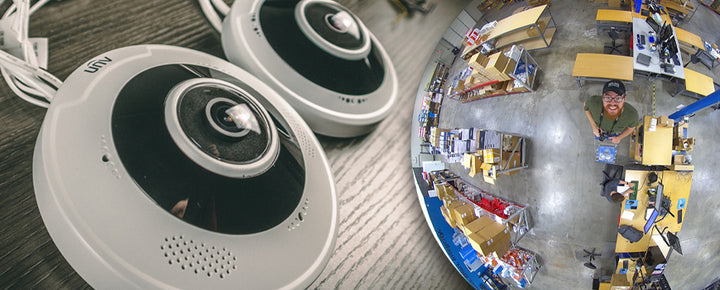

Uniview's 360° fisheye lens cameras are great for anyone looking to expand the scope of their surveillance without investing in several different cameras or large PTZs. With a built-in mic, smart IR, alarm capabilities, and a ton of incredible specs and features, this ultra high definition 5MP fisheye security camera is a great option for full 360° coverage.
Uniview's 360° fisheye lens cameras are great for anyone looking to expand the scope of their surveillance without investing in several different cameras or large PTZs. With a built-in mic, smart IR, alarm capabilities, and a ton of incredible specs and features, this ultra high definition 5MP fisheye security camera is a great option for full 360° coverage.
5MP HD RESOLUTION
The IPC815SB-ADF14K-I0 captures video up to a resolution of 5MP @ 30 FPS, which is 2592 x 1944 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 5MP, your going to get a crisper, cleaner, and more detailed image.
1.8mm Fixed Lens
The IPC815SB-ADF14K-I0 has a
1.8mm
Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length
on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But
the shorter the focal length, the wider the field of view and the more area your surveillance will
cover.
The IPC815SB-ADF14K-I0 has a horizontal field of view of
360°.
Built-in Microphone
Having audio capabilities in your video surveillance system can be an important feature. The IPC815SB-ADF14K-I0 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.
NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.
IP66 Weatherproof rating
This camera has an Ingress Protection (IP) rating of 66. This means the camera is completely protected
from dust and other solid particles (the first six). It can also withstand powerful streams of water
jets from any direction (the second six).
Rest assured that when you install your camera outside, it will have no problem braving the toughest of
storms.
IK10 Vandalproof Rating
The IPC815SB-ADF14K-I0 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these style of cameras are often called vandal-proof.
Up to 30ft NIGHT VISION RANGE
When the sun goes down or the lights go out, this camera has the ability to see Up to 30ft in the dark allowing the camera to continue functioning and recording video 24/7, day or night. You're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
Remote access Uniview
The IPC815SB-ADF14K-I0 is part of the Uniview line of products. As such it's packed withfeatures that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, this app gives you the power to adjust advanced settings on fly. For the novice, you can use the apps to simply view live feeds and play back recorded video.
Plug & play
If you're creating a new system out of our Uniview cameras, set up is insanely easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you have instant video on the recorder's HDMI interface. You can also view and manage the NVR through free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.
| SPECIFICATION | |
|---|---|
| Camera Type | IP |
| Form Factor | Fisheye |
| Resolution | 5MP |
| Max Resolution | 2592 x 1944 |
| Frames Per Second | 30 FPS |
| Image Sensor | 1/2.8", progressive scan, 5.0 megapixel, CMOS |
| Lens Type | Fixed Lens |
| Focal Length | 1.8mm |
| Field of View | 360° |
| Illumination | Infrared |
| IR Range | Up to 30ft |
| Video Compression | Ultra H.265|H.265|H.264 |
| Max Video Bitrate | 16Mbps |
| Weatherproof Rating | IP66 |
| Vandal proof Rating | IK10 |
| Audio | Built-in Microphone |
| Onvif Compatible | Yes |
| Intelligent Events | Heat Map |
| Onboard Storage | Up to 256GB |
| Power Supply | DC12V|POE |
| Power Consumption | Max 8.5W |
| Operating Temperature | -22°F ~ 140°F |
| Weight | 0.79lb |
| SOFTWARE | |||
|---|---|---|---|
| Name | Description | Version | Download |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. |
Versionv1130.3.12.0
|
DownloadDownload |
| EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. |
Versionv1122.2.6.0
|
DownloadDownload |
| EZ Player | Media player for local recordings. |
Versionv1111.1.3.0
|
DownloadDownload |
| Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. |
Version
|
DownloadDownload |
| EZ Station | Unified management for Uniview IP Cameras and NVRs. |
Versionv1113.3.10.1
|
DownloadDownload |
| MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. |
Version
|
DownloadDownload |
