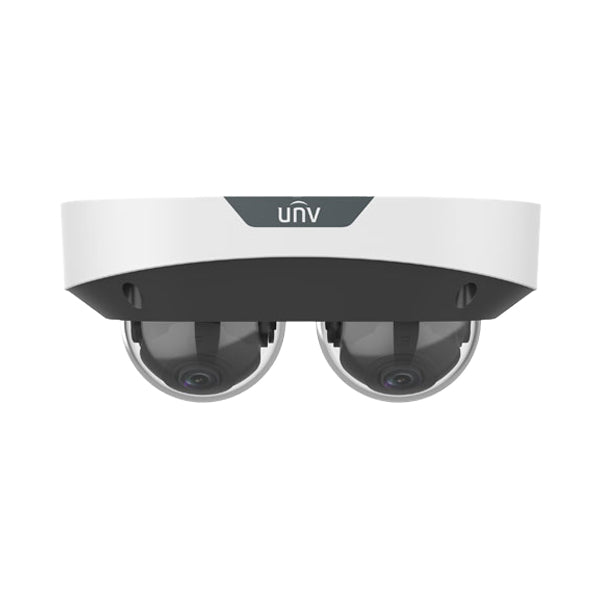

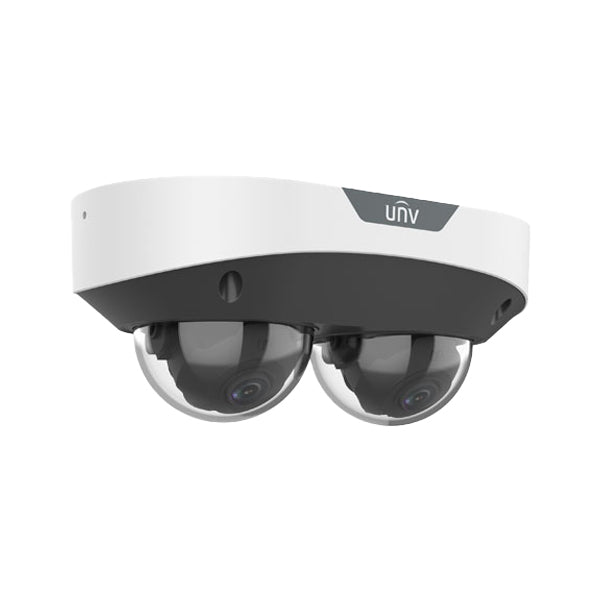

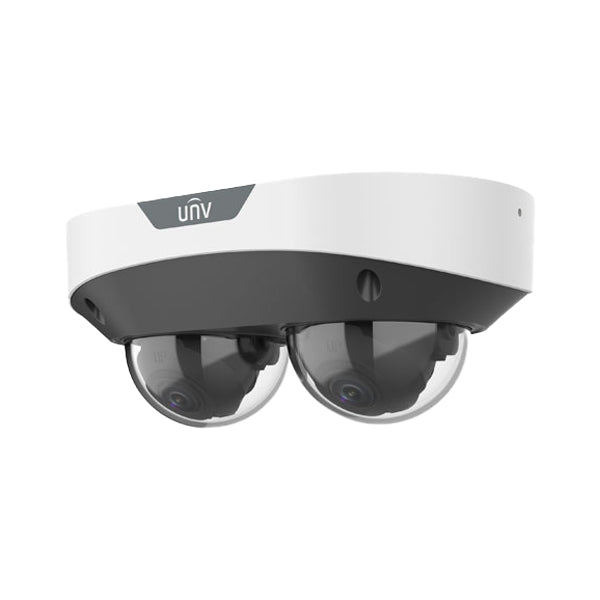

UNV 4MP Dual Lens, Dual Channel Non-Splicing IP Vandal Dome, 2 Lenses, NDAA, Deep Learning, Lighthunter (IPC3224SS-ADF28K-I1)

Rating:
SKU# 3722
Availability: In stock
$769.00

Have a question about this product? Ask our experts.
Warranty
3 Year Warranty
Guarantee
60 Day Guarantee
Support
Lifetime Tech Support
Free Shipping
Free Ground Shipping
IPC3224SS-ADF28K-I1
IP Security Camera
4MP
HD Resolution
2.8mm
Fixed Lens
IP67
Weatherproof Rating
Up to 100ft
Night Vision IR Range
  • 2 X 4MP, 1/3″ Image Sensor
  • Smart Intrusion Prevention (Both Channels)
  • Ultra Motion Detection (Both Channels)
  • Non Splicing, 2 Cameras on 1 Category Cable
  • 4MP 2688×1520@20FPS X2
  • Face Capture (Channel 1 Only)
  • Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
  • Up to 130dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (100ft) IR distance
  • Ultra 265, H.265, H.264, MJPEG
  • ONVIF Conformance
  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • MicroSD Card up to 256GB
  • Two Built-In Microphones
  • IP67 Waterproof
  • IK10 Impact Resistance

4MP HD Resolution

The IPC3224SS-ADF28K-I1 captures video up to a resolution of 4MP @ 25 FPS, which is 2688x1520 pixels. Every pixel added to your camera's picture gives you a higher image quality and more detail. So at 4MP, you're going to get a crisper, cleaner, and more detailed image.

2.8mm Fixed Lens

The IPC3224SS-ADF28K-I1 has a 2.8mm Fixed Lens. That means it’s fixed at one length; it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC3224SS-ADF28K-I1 has a horizontal field of view of 97.7°.

Artificial Intelligence

Artificial Intelligence

With artificial intelligence, the IPC3224SS-ADF28K-I1 adds more reliability to your surveillance system, since you don't have to worry about false alarms. This camera can recognize the difference between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.

Built-in Microphone

Having audio capabilities in your video surveillance system can be an important feature. The IPC3224SS-ADF28K-I1 comes with a built-in microphone, allowing you to hear and record crisp, clear audio without running any additional cables to power a microphone.

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

IP67 Weatherproof Rating

This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected from dust and other solid particles. It can also withstand being submerged in 3 feet of water for up to 30 minutes.

Rest assured that when you install this camera outside, it will have no problem braving the toughest of storms.

IK10 Vandalproof Rating

The IPC3224SS-ADF28K-I1 has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try to bust open this camera, more power to them. Literally, they're going to need a lot more power, because this thing is indcredibly durable. That's why these dome-style cameras are often called vandal-proof domes, or vandal domes for short.

Up to 100ft Night Vision IR Range

When the sun goes down or the lights go out, this camera switches on its own onboard infrared LED lights. These lights, which are invisible to the human eye, allow the camera to continue functioning and recording video 24/7, day or night. And since its IR range covers up to 100ft, you're not going to miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.

Remote Access

The IPC3224SS-ADF28K-I1 is a part of our Uniview line of products. As such, it's packed with features that would please a power user, yet it's simple enough to operate for a novice. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the power to adjust advanced settings on the fly. For the novice, you can use the apps to simply view live feeds and play back recorded video. Whatever you need to accomplish, it's all right there at your fingertips.

ONVIF Compatibility

If you want to add this camera to a security system already set up, that’s no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, you’ll be able to set this camera up with your current system.

Related Videos

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account.
No questions yet. Be the first to ask a question!
Specifications Download PDF
Camera Type IP
Form Factor Dome
Resolution 4MP
Max Resolution 2688 x 1520
Frames Per Second 25 FPS
Image Sensor 1/3.0", 4.0 megapixel, progressive scan, CMOS
Lens Type Fixed Lens
Focal Length 2.8mm
Field of View 97.7°
Illumination Infrared
IR Range Up to 100ft
Video Compression Ultra H.265, H.265, H.264
Max Video Bitrate 16Mbps
Weatherproof Rating IP67
Vandal Proof Rating IK10
Audio Built-in Microphone
Onvif Compatible Yes
Intelligent Events Cross Line Detection, Area Entrance Detection, Area Exit Detection, Intrusion Detection, Face Detection, People Counting, Crowd Density Monitoring
Artificial Intelligence Yes
Onboard Storage Up to 256GB
Power Supply DC12V
Power Consumption Max 9.1w
Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
Weight 1.37lb (0.62kg)
Software
Name Description Version Download
EZ Station Unified management for Uniview IP Cameras and NVRs. v1130.3.12.0 Download
EZ Tools Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. v1122.2.6.0 Download
EZ Player Media player for local recordings. v1111.1.3.0 Download
Windows Plugin This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. Download
EZ Station Unified management for Uniview IP Cameras and NVRs. v1113.3.10.1 Download
MAC Plugin This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. Download
