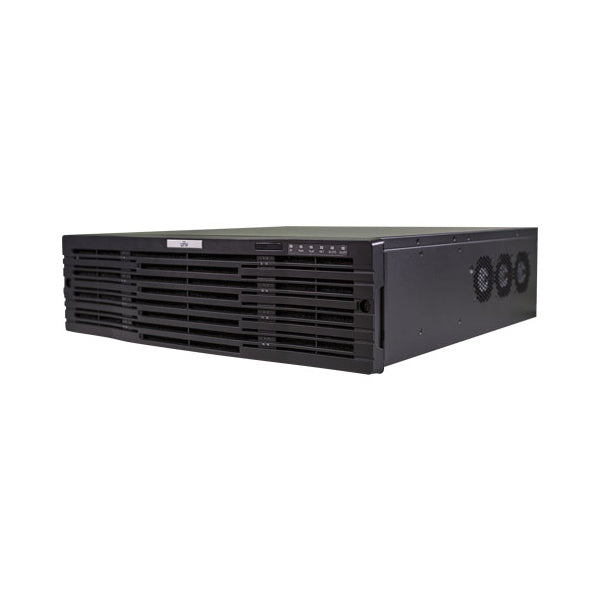

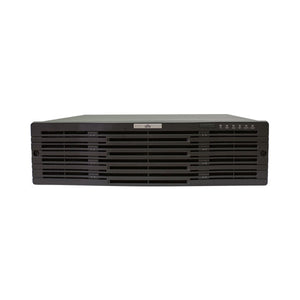

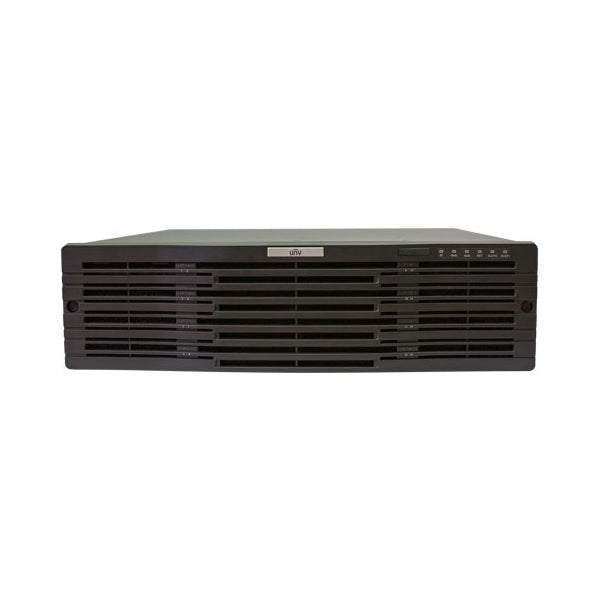

UNV 128 Channel 12MP NVR with 16 SATA HDD Bays (NVR516-128)
Have a question about this product? Ask our experts.

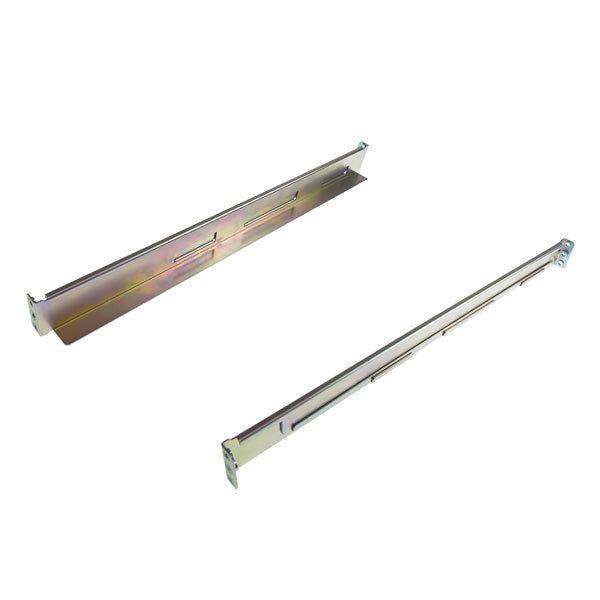

You may want these accessories for this product

3 Year Warranty

60 Day Guarantee

Lifetime Tech Support

Free Ground Shipping
NVR516-128
128ch IP Recorder12MP
Up to 12MP Resolution16 SATA HDD
Up to 10TB eachVideo recorders are the heart of your cctv system. With the NVR516-128 you can be sure that your security cameras are in good hands. This IP video recorder is perfect for larger installations with up to 128 security cameras.
It doesn’t matter how good your cameras are. With an inefficient recorder, your video surveillance system will be severely limited. The NVR516-128 is just what your system needs to ensure fast, powerful, and reliable performance 24/7.
- Supports Ultra 265/H.265/H.264 video formats
- 128-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

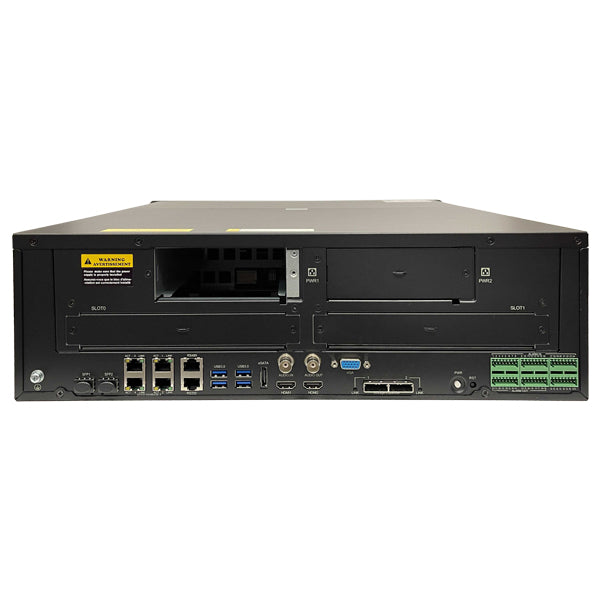

- Supports 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- 2 decoding cards optional, up to 12-ch HDMI
- Supports HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- 16 SATA HDDs, up to 10TB for each HDD
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
Related Videos
-
Overall Rating
-
Verified PurchaseWe just finished up an install of about 60 cameras at a grocery store. We chose to install the 128 over a 64 to give the client room to add more cameras if a need becomes apparent.
The nvr is easy to configure and use. It hasn't caused any issues and is powerful enough that it doesn't hang or freeze up.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account.
No questions yet. Be the first to ask a question!
Specifications | Download PDF |
---|---|
IP Channels | 128ch |
Max Resolution | 12MP |
Max Incoming Bandwidth | 512Mbps |
Max Outgoing Bandwidth | 384Mbps |
Video Compression | Ultra H.265, H.265, H.264 |
Hard Drive Slots | 16 |
Hard Drive Capacity | Up to 10TB each |
Synchronus Playback | 16ch |
Audio I/O | 1ch / 1ch |
Alarm I/O | 24ch / 8ch |
Onvif Compatible | Yes |
Power Supply | 100-240VAC |
Operating Temperature | 14°F ~ 131°F |
Dimensions | 18.8 x 19.0 x 5.1in |
Weight | ~22.05lbs |
Name | Description | Version | Download |
---|---|---|---|
EZ Station | Unified management for Uniview IP Cameras and NVRs. | v1130.3.6.0 | Download |
EZ Tools | Uniview tool kit for device search and upgrade, remote configuration, recording time and capacity calculation. | v1122.2.1.0 | Download |
EZ Player | Media player for local recordings. | v1111.1.3.0 | Download |
Windows Plugin | This is the web plugin for Windows. After installation, you will be able to live view most of Uniview IPC/NVR on IE for Windows. | Download | |
EZ Station | Unified management for Uniview IP Cameras and NVRs. | v1113.3.2.1 | Download |
MAC Plugin | This is the web plugin for Mac OS. After installation, you will be able to live view most of Uniview IPC/NVR on Safari for Mac. | Download |
